Name: Zoomlion ZA45J Telescopic Boom Lift 51 ft 10 in Working Height
Brand: Zoomlion
SKU: 28146
Availability: InStock

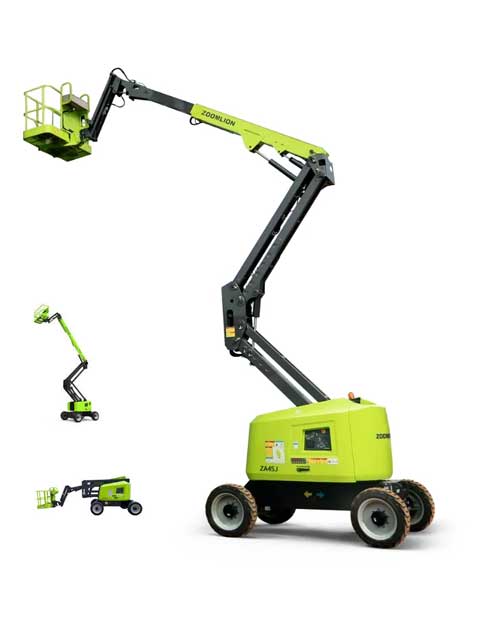

Zoomlion ZA45J Telescopic Boom Lift 51 ft 10 in Working Height

$82,900.00

ZOOMLION ZA45J DIESEL TELESCOPIC BOOM LIFTS

660 lb platform capacity for higher efficiency
Built-in multiple pressure control leveling system to enhance stability
A precise load-sensing system to improve overload safety operations
Integrated with a rotary reducer to enhance rotation stability
Hostile Kits available for dusty working environments
Deadweight Lowering System for smooth operation and energy efficiency
51 ft 10 in working height

Features:
Horn, all motion alarm, Proportional control, Self-closing entry gate, flashing beacon, Auto-leveling system, Emergency stop button, over-tilt protection system, Emergency descent system, On-board diagnostic system, Oscillating axle, 4.3′ LED display, Load sensing system, Swing-out engine tray.

Description

Zoomlion-ZA45J

Model ZA45J Size		Performance
Specification	Imperial	Specification	Imperial
Work Height	51 ft 10 in	Platform Capacity	660 lb / 550 lb
Platform Height	45 ft 3 in	Drive Speed	4.23 mph / 3.79 mph
Horizontal Outreach	27 ft 3 in	Gradeability	45% (24°)
Up and Over Height	24 ft 9 in	Axles Oscillation	4 in / 8 in
A – Stowed Length	21 ft 7 in	Turning Radius (Inside)	6 ft 9 in / 8 ft 3 in
B – Stowed Width	7 ft 7 in	Turning Radius (Outside)	15 ft 8 in / 17 ft 11 in
C – Stowed Height	7 ft 5 in	Swing	355° / 360° continuous
D – Platform Length	6 ft	Platform Rotation	±90°
E – Platform Width	2 ft 6 in	H-Tail Swing	0
F – Wheelbase	7 ft 9 in	Max. Working Slope	5°
G – Ground Clearance	1 ft 5 in	Max. Wind Speed	27.96 mph
